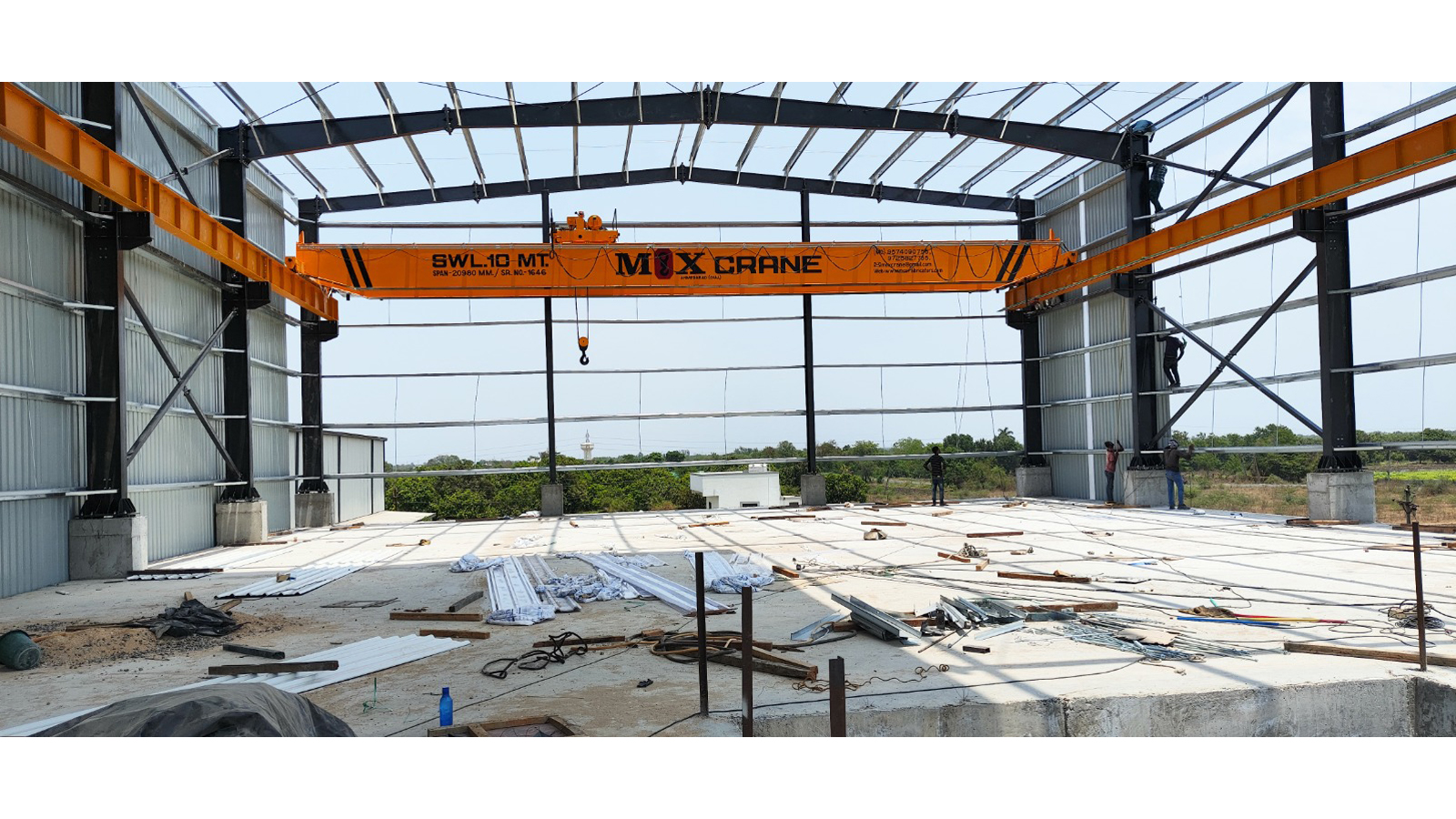

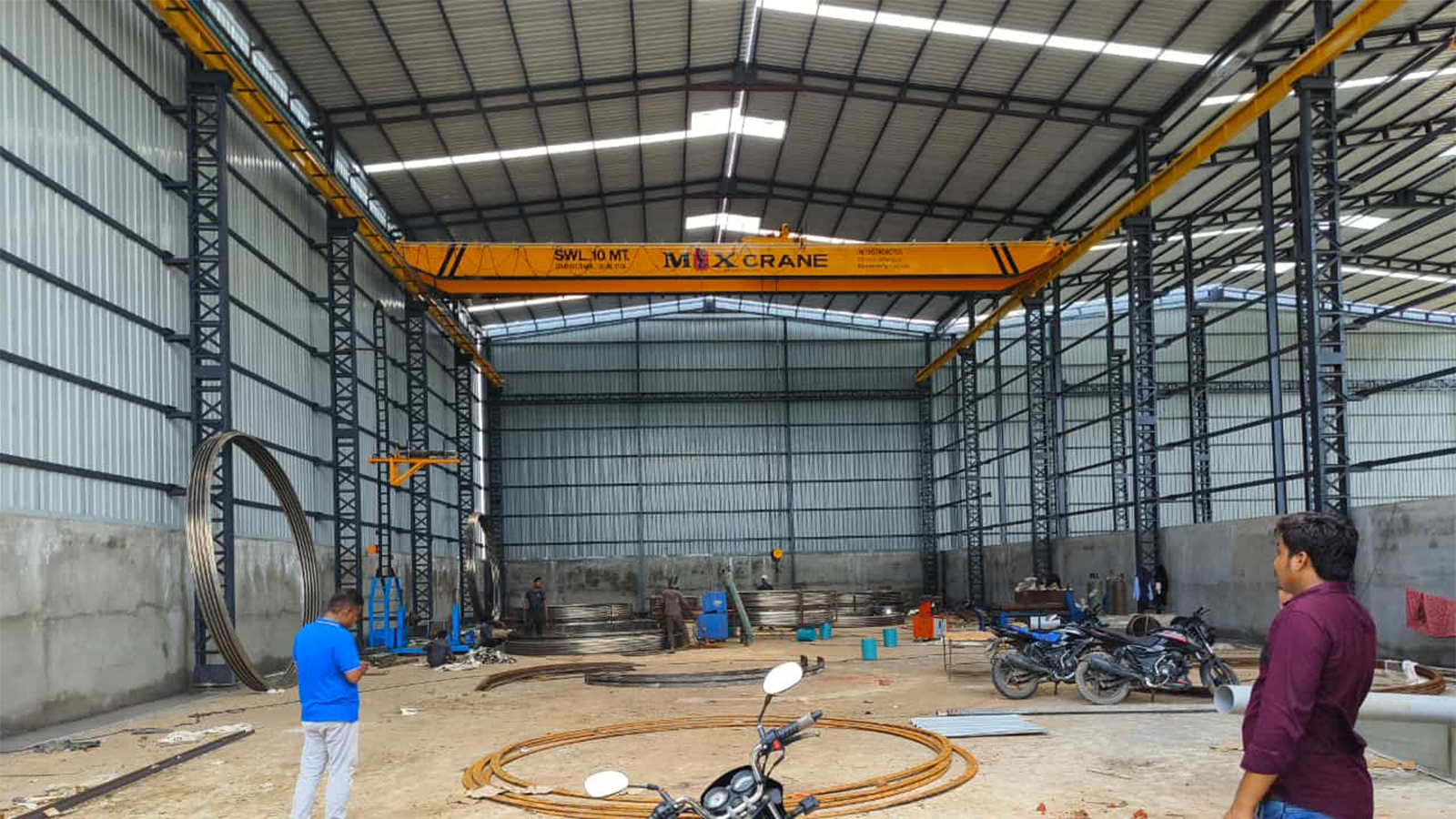

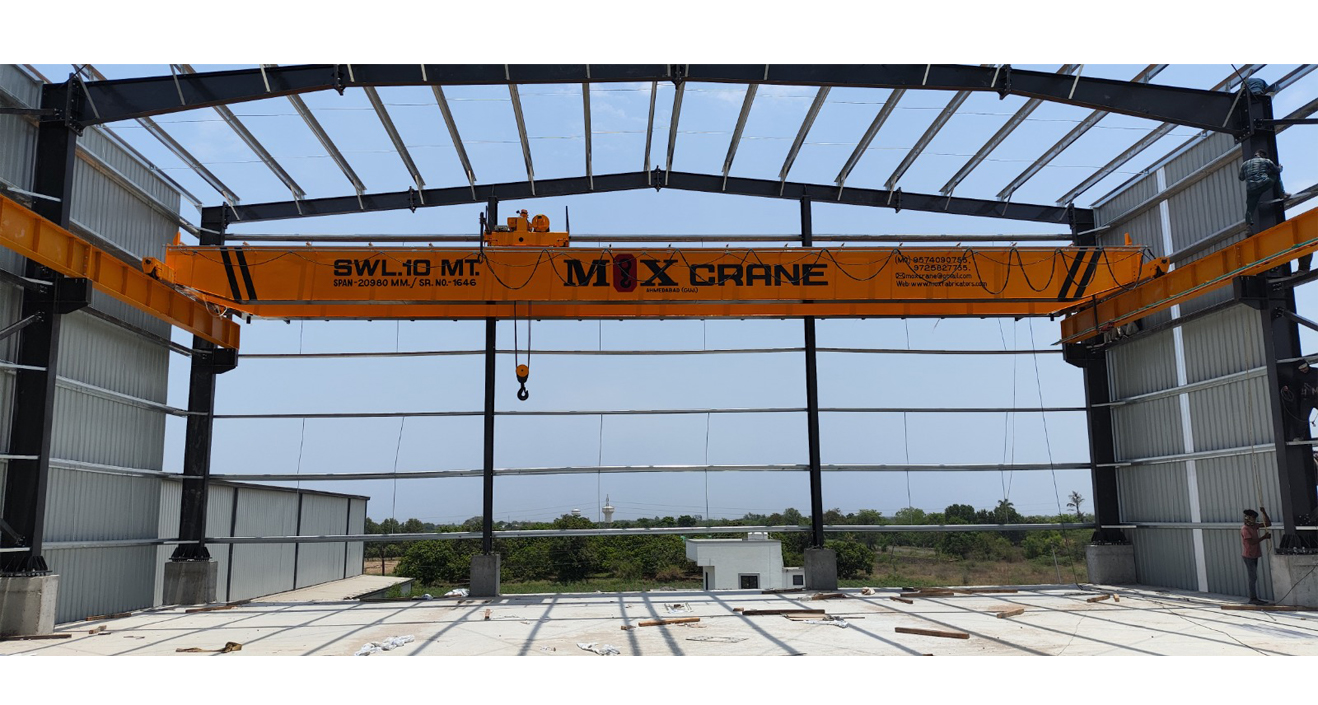

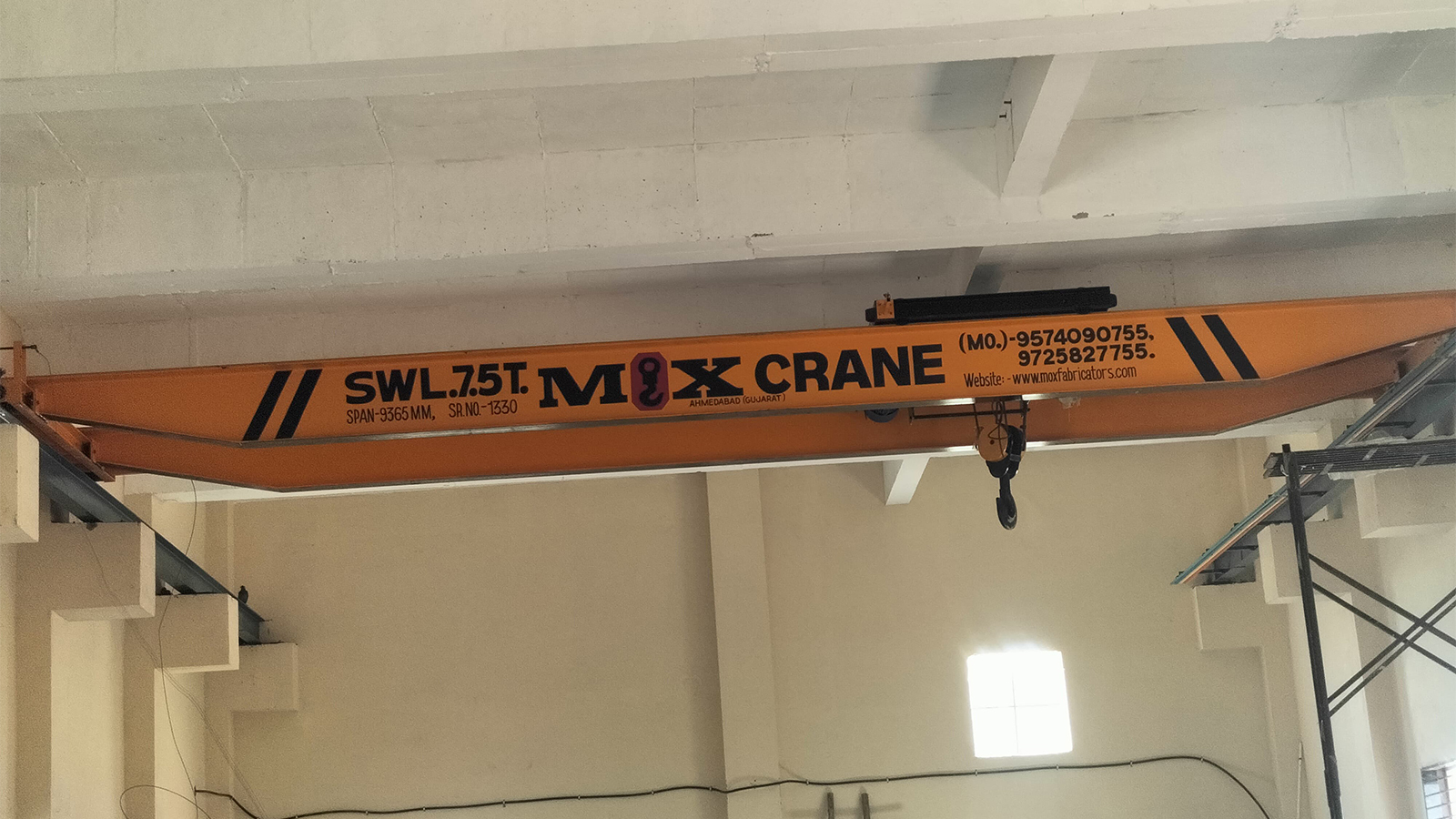

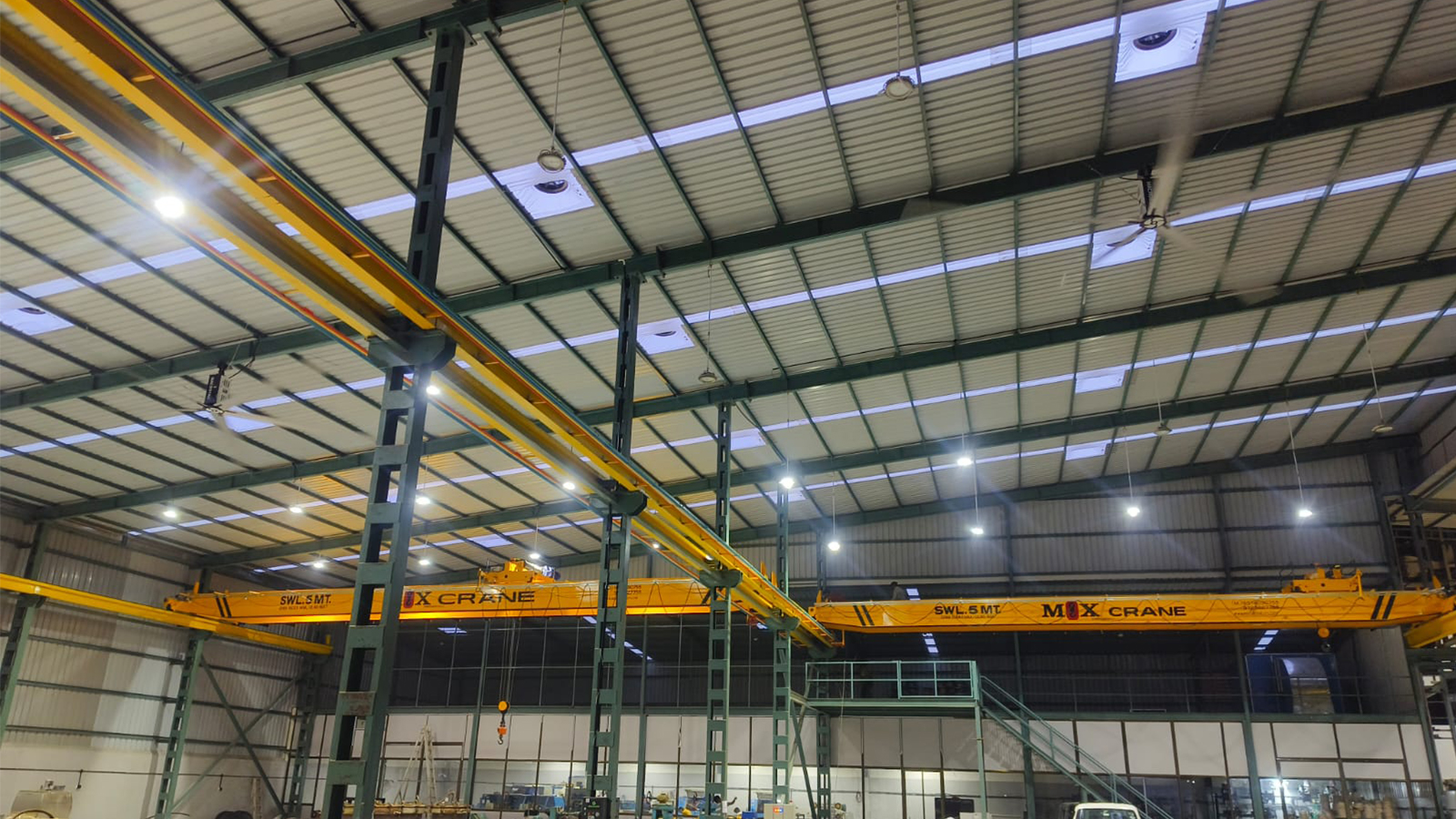

We Are Known As The Renowned Manufacturer, Exporter And Supplier Of Highly Efficient Double Girder Eot Cranes That Are Used In Various Industries For Material Handling Purposes.
It consist of a Hoisting crab mechanism travels above both girders run over cross travel rails with platform to maintain all parts of crab.
Compared with top running single girder eot cranes, double girder eot cranes have a much higher load capacity, and longer spans, higher Duty Group, and more flexible configuration
Lifting height – A trolley was equipped as the lifting mechanism that travels on the two bridge beams. The hook can be pulled up between the two beams, so double girder eot cranes offer a better hook height in the given room.
Span Length: 3 To 30 Meters
Working Load: 3,000 Kgs To 30,000 Kgs
As per the IS 3177 & 807, load testing of the crane is done at 125% of SWL.
Easily Adjustable Limit Switches
Height Of Lift: As Per Customer Requirements
Class Of Duty / Standards : Equivalent To M3, M4, M5, M7, M8
Lifting speed: As per client requirement and depends on their application of use
Crane Control: From Floor Through Pendent Push Buttons, and also wireless Radio Remote Control
Voltage lower protection function.
Advanced Control Systems: Equipped with features like variable frequency drive (VFD) for smooth speed control, anti-sway technology, and precise positioning.
Brakes: Built-in Brakes For Hoisting, Cross Travel And Long Travel Motions
