The gantry crane is not restricted by the workshop steel structure, and owing to the simple structure and convenient installation, it is suitable for various working conditions.

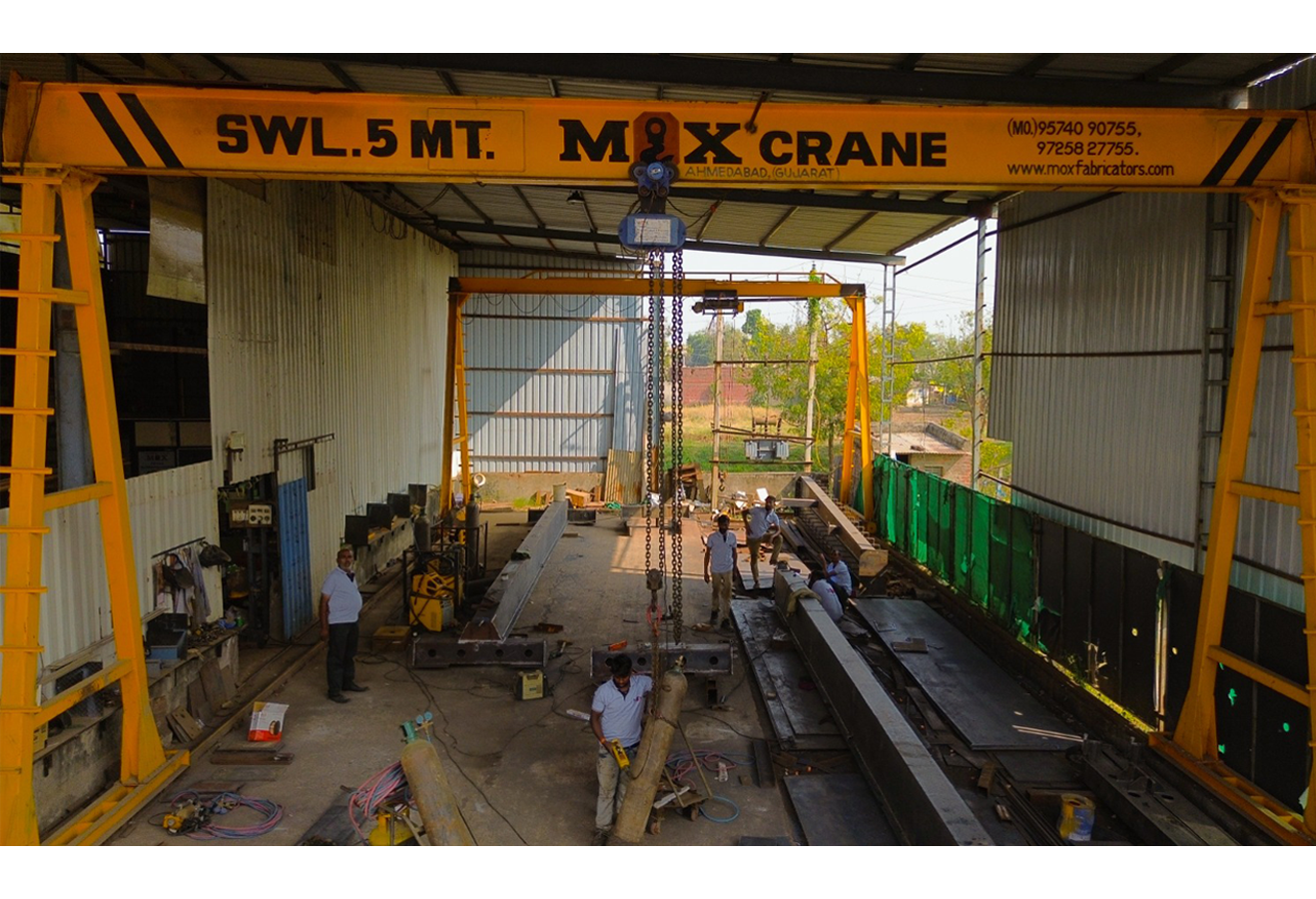

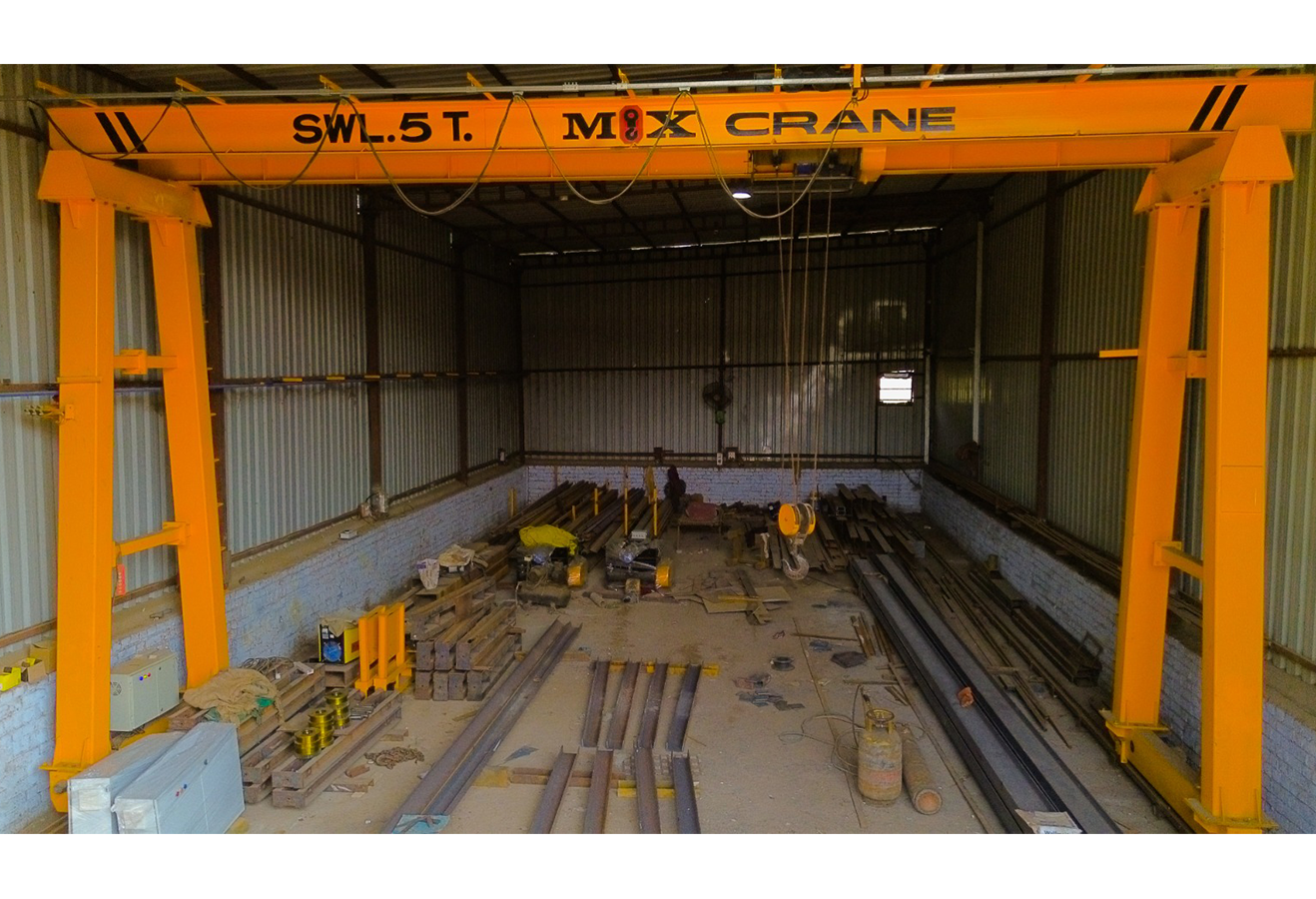

A goliath (gantry) crane is similar to a top running crane except that the crane bridge is supported by legs and the rails are at ground level.
It can be used indoors and outdoors, such as the docks, freight yards, warehouses, and construction sites.
Outdoor duty gantries are checked for stability under storm condition. Special storm anchors are provided to prevent toppling of crane under storm condition.
High strength, good rigidity, high stability and low cost. It is one cost-effective crane solution
Span Length: 3 To 30 Meters
Working Load: 500 Kgs To 30,000 Kgs
As per the IS 3177 & 807, load testing of the crane is done at 125% of SWL.
Easily Adjustable Limit Switches
Height Of Lift: As Per Customer Requirements
Class Of Duty / Standards : Equivalent To M3, M4, M5, M7, M8
Lifting speed’s per client requirement and depends on their application of use
Crane Control: From Floor Through Pendent Push Buttons, and also wireless Radio Remote Control
Voltage lower protection function.
Advanced Control Systems: Equipped with features like variable frequency drive (VFD) for smooth speed control, anti-sway technology, and precise positioning.
Brakes: Built-in Brakes For Hoisting, Cross Travel And Long Travel Motions
