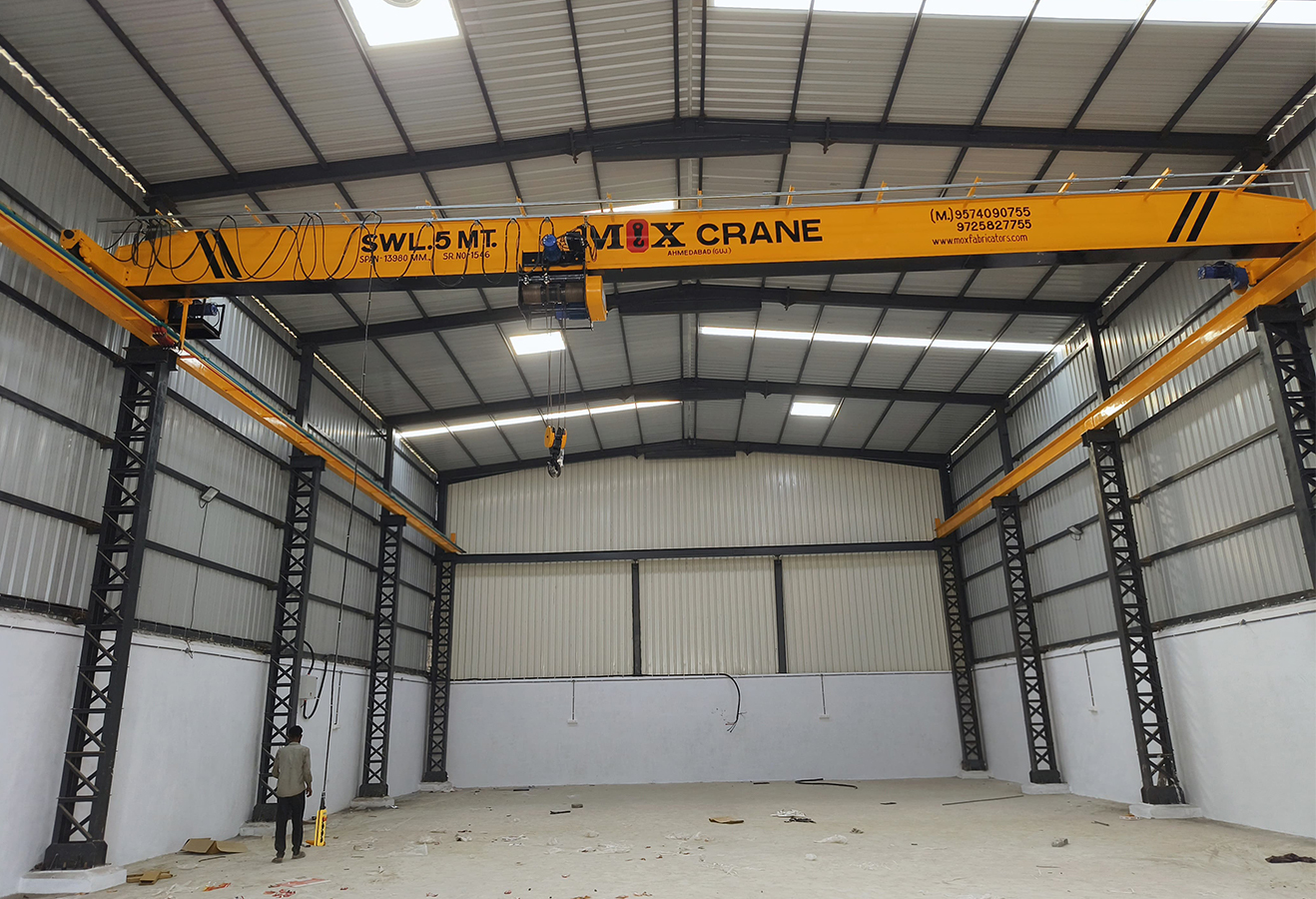

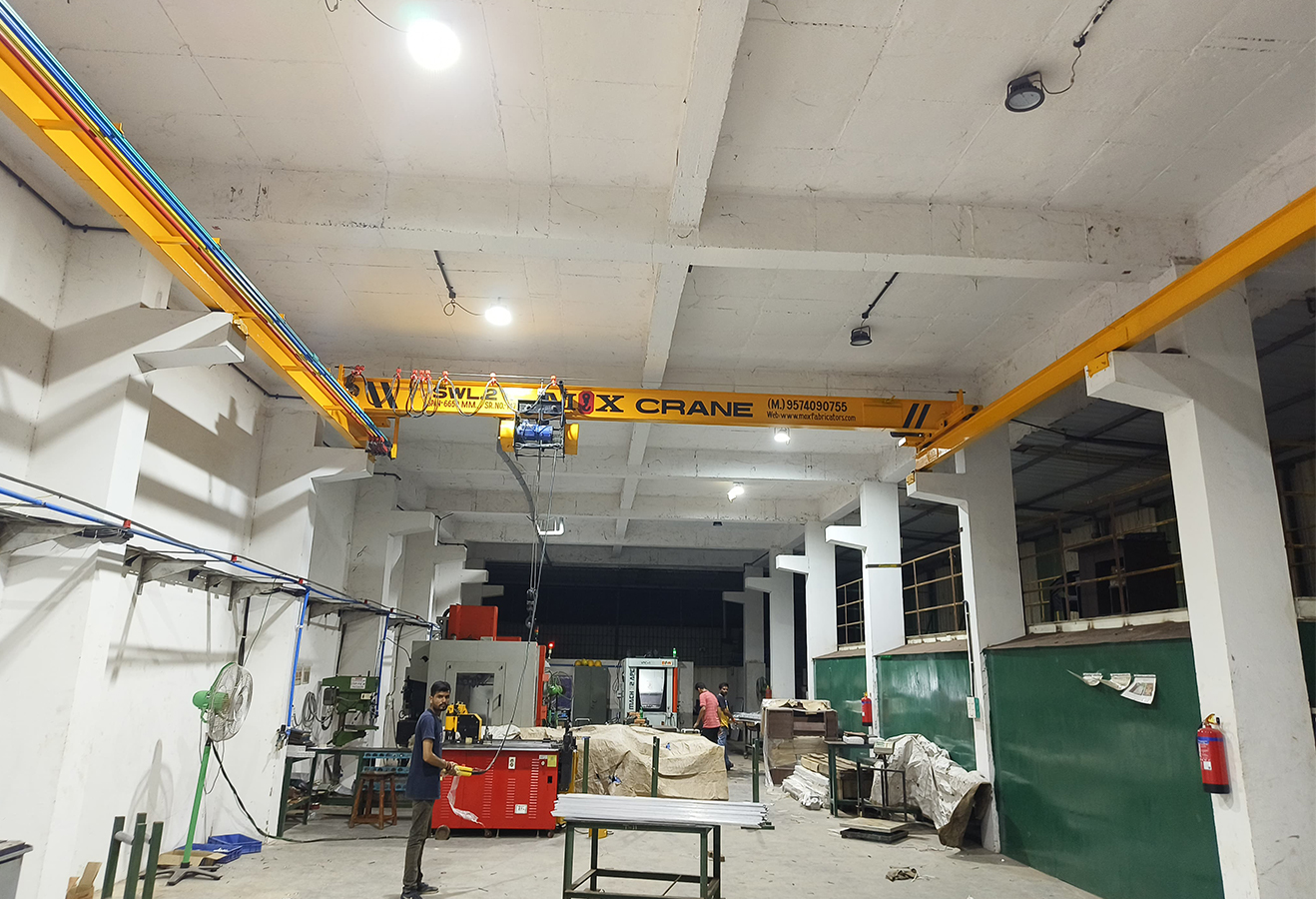

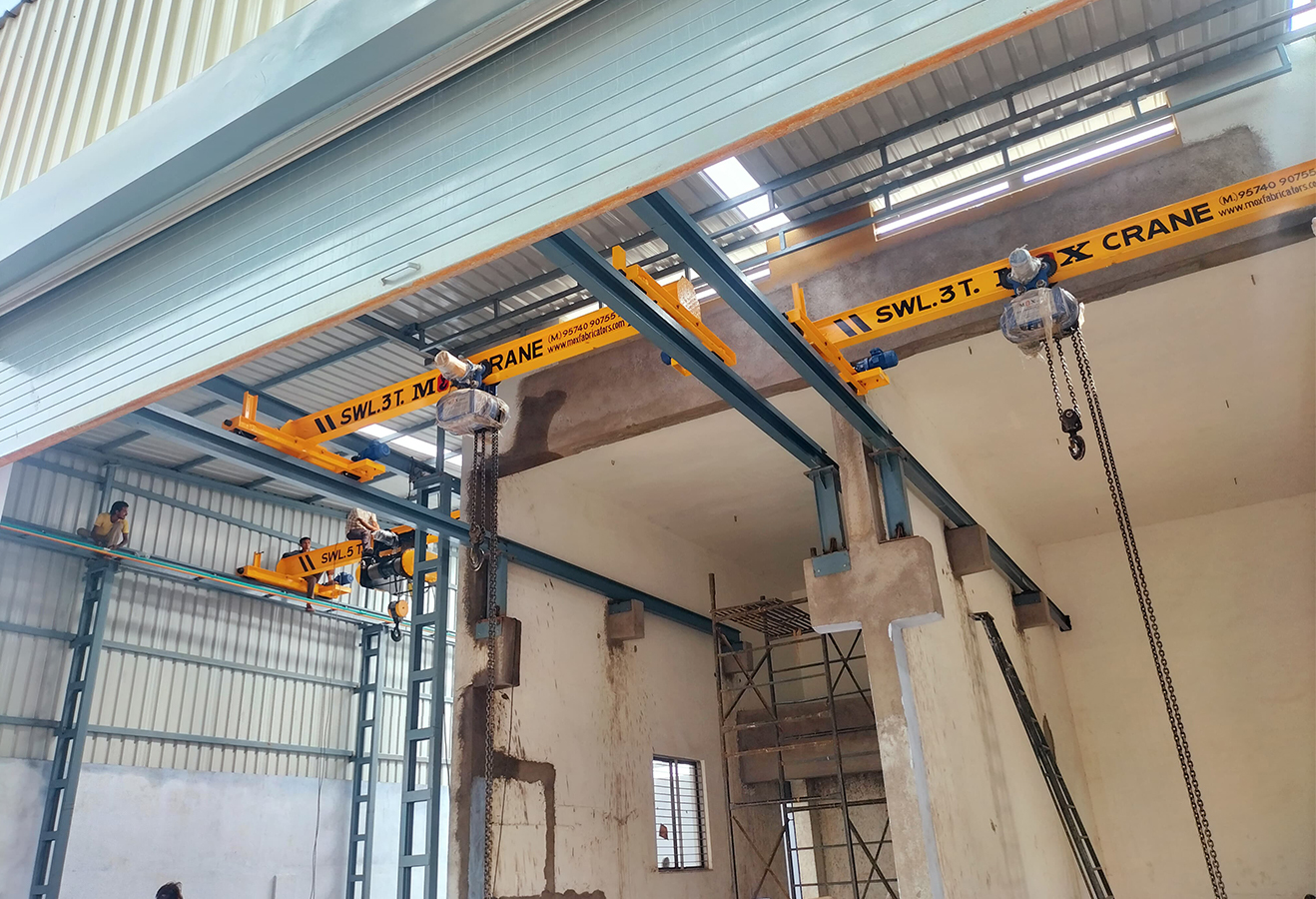

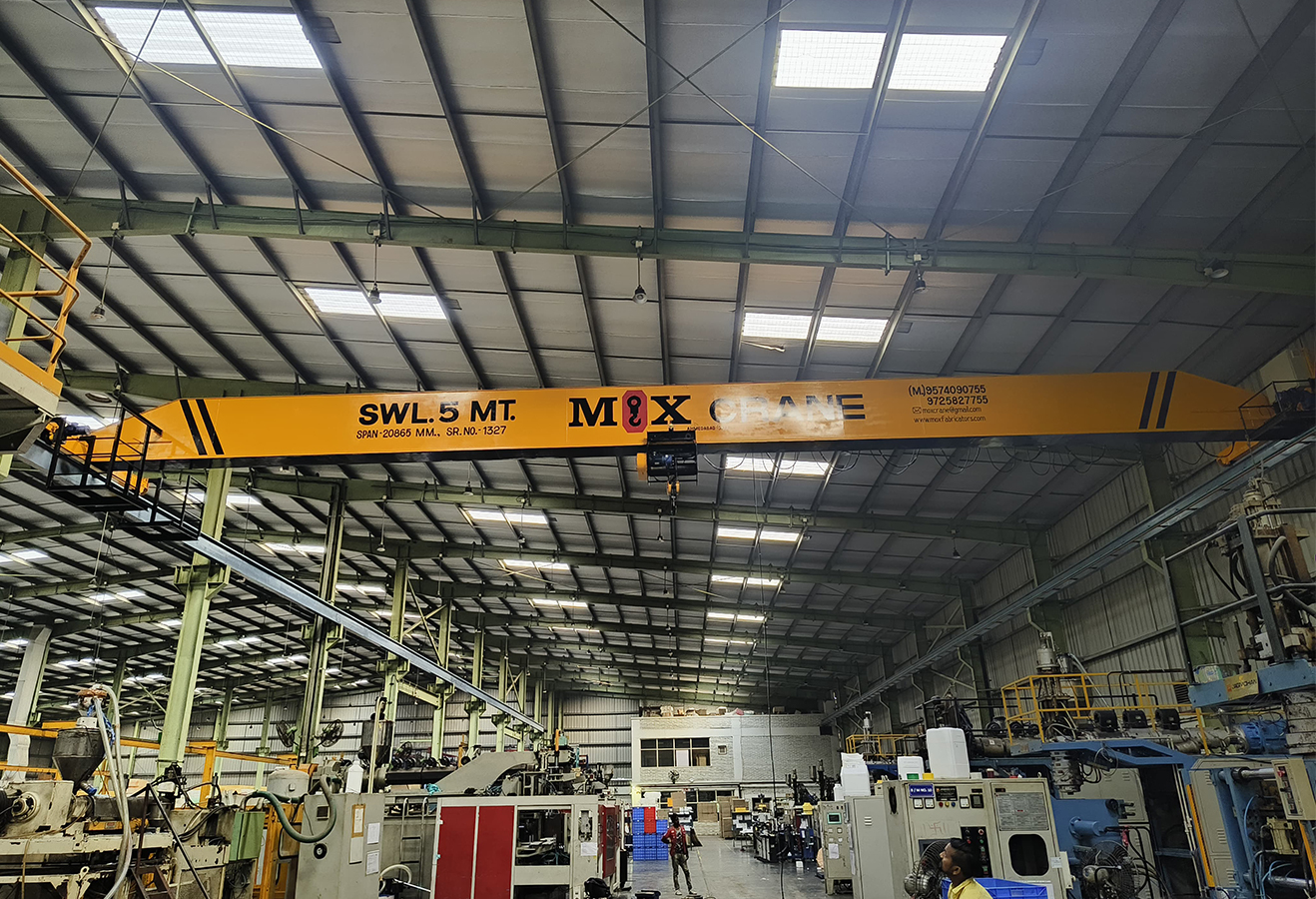

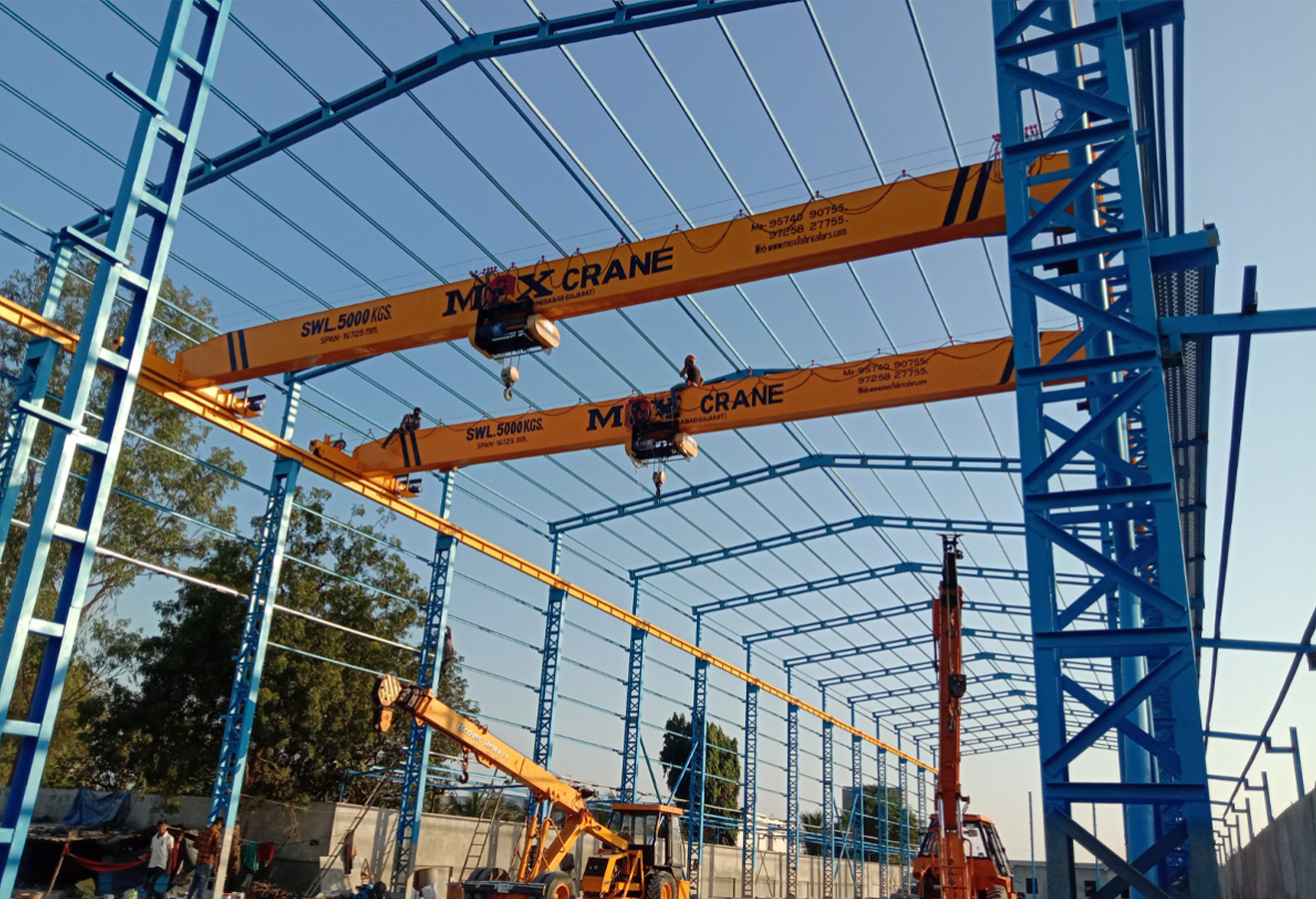

We Are Engaged In Manufacturing And Supply High Quality Range Of Single Girder Eot Crane Which Are Used For Moving Loads In Different directions such As Up, Down, Right, Left and North & south Easily, Single girder electric overhead travelling cranes-also known as single girder EOT crane or single beam overhead cranes are our most popular type of overhead cranes, as they provide the most cost-effective lifting solution for all capacities 0.5Ton to 15 Tonnes and up to 30.0mtr span.
Single girder crane is composed by the main girder, end carriages, electric hoist, and electric control system
Our Single Beam EOT Crane has a long life span and a wide variety of choices for customizing it for specific applications.
Span Length: 3 To 30 Meters
Working Load: 500 Kgs To 15,000 Kgs
As per the IS 3177 & 807, load testing of the crane is done at 125% of SWL.
Low dead weight
Easily Adjustable Limit Switches
Height Of Lift: As Per Customer Requirements
Class Of Duty / Standards : Equivalent To M3, M4, M5, M7, M8
Lifting speed: As per client requirement and depends on their application of use
Crane Control: From Floor Through Pendent Push Buttons, and also wireless Radio Remote Control
Voltage lower protection function.
Advanced Control Systems: Equipped with features like variable frequency drive (VFD) for smooth speed control, anti-sway technology, and precise positioning.
Brakes: Built-in Brakes For Hoisting, Cross Travel And Long Travel Motions
